Flexible Shaft Coupling
If you are willing to buy Flexible Shaft Coupling from one of precision machinery manufacturers and suppliers in China, Youright Precision is always at your service. Welcome your enquiry to us and further business negotiations, let's creat a prosperous future together.
Description
If you are willing to buy Flexible Shaft Coupling from one of precision machinery manufacturers and suppliers in China, Youright Precision is always at your service. Welcome your enquiry to us and further business negotiations, let's creat a prosperous future together.
Company Advantage
OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.
Flexible Shaft Coupling Model Available
|
Model No. |
Aperture |
D |
L |
|
|
d min |
d max |
|||
|
JT1-16 |
4 |
6.35 |
16 |
23 |
|
JT1-20 |
5 |
9.525 |
20 |
26 |
|
JT1-25 |
8 |
12 |
25 |
31 |
|
JT1-32 |
10 |
14 |
32 |
41 |
|
JT1-40 |
10 |
18 |
40 |
56 |
|
JT1-50 |
12 |
19 |
50 |
71 |
|
JT1-63 |
14 |
24 |
63 |
90 |
Features
1.One piece of metal flexible coupling;
2.Zero turn gap;
3.Elasticity compensates for radial, angular and axial misalignment;
4.Clockwise and counterclockwise rotation characteristics are identical;
5.Fix the screws.
|

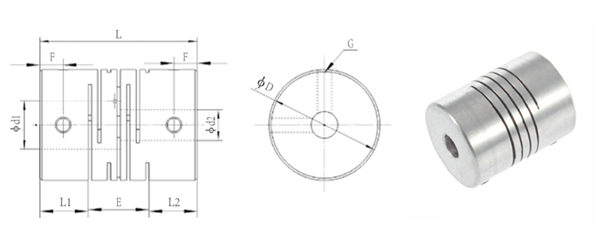

Model No. |
Aperture |
D |
L |
F |
G |
Tightening Torque（N.m) |
|
|
d min |
d max |
||||||
|
JT1-16 |
4 |
6.35 |
16 |
23 |
3 |
M3 |
0.7 |
|
JT1-20 |
5 |
9.525 |
20 |
26 |
3 |
M3 |
0.7 |
|
JT1-25 |
8 |
12 |
25 |
31 |
4 |
M4 |
1.7 |
|
JT1-32 |
10 |
14 |
32 |
41 |
6 |
M4 |
1.7 |
|
JT1-40 |
10 |
18 |
40 |
56 |
8.5 |
M5 |
4 |
|
JT1-50 |
12 |
19 |
50 |
71 |
10.5 |
M6 |
7 |
|
JT1-63 |
14 |
24 |
63 |
90 |
13 |
M8 |
15 |
|
Model No. |
Rated torque （N.m) |
Max torque (N.m) |
Max Rotational Frequency (rpm) |
Moment of inertia (kg.㎡) |
Static Torsional Stiffness (N.m/rad) |
Errors of Eccentricity (m.m) |
Errors of Angularity (*) |
Errors of Shaft End-play (mm) |
Weight g |
|
JT1-16 |
0.8 |
1.6 |
22000 |
3.2X10-7 |
46 |
0.1 |
1.5 |
±0.3 |
8 |
|
JT1-20 |
1.1 |
2.2 |
18000 |
8.8X10-4 |
115 |
0.1 |
1.5 |
±0.3 |
16 |
|
JT1-25 |
1.4 |
2.8 |
14000 |
2.5X10-4 |
165 |
0.15 |
1.5 |
±0.35 |
28 |
|
JT1-32 |
2.8 |
5.6 |
10000 |
9.5X10-4 |
270 |
0.15 |
1.5 |
±0.35 |
62 |
|
JT1-40 |
6.3 |
12.6 |
9400 |
3.1X10-5 |
345 |
0.2 |
1.5 |
±0.35 |
134 |
|
JT1-50 |
11 |
22 |
7600 |
1.0X10-5 |
580 |
0.2 |
1.5 |
±0.35 |
266 |
|
JT1-63 |
22 |
44 |
6000 |
3.0X10-4 |
830 |
0.2 |
1.5 |
±0.35 |
500 |
Warranty Statement
We confirm that the warranty period is 12 months since the customers receive the goods, if any other special requirement, we could extended it, and serve with technical supports all the time.
Application Industries
The Flexible Shaft Coupling is widely used in Samping Machines, Automatic Stamping Machines, Bending Machines, Welding Machines, Punching Machines, Brushing, Laser Cutting Machine, CNC Machining Lathes, etc.
FAQ
1. Monthly Capacity: 120,000-140,000 pcs;
2. Material: V.T.A or as per the customers’ suggestion;
3. Lead time: around 7-12 days, pls confirm before order;
4. Incoterm: FOB, C&F, CIF;
5. Delivery Cost: Pls advise the port of destination and we could assist to check it for you;
6. Payment Term: T/T; L/C; PayPal; Alibaba Trade Assurance.
If you are interested in a Flexible Shaft Coupling manufacturer in China, we will be your best choice.
