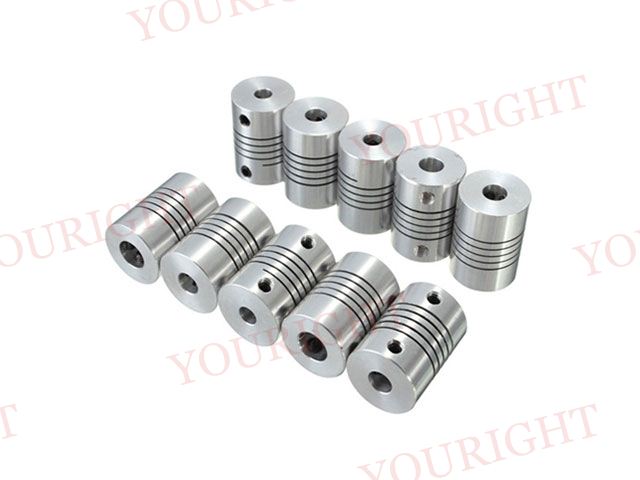

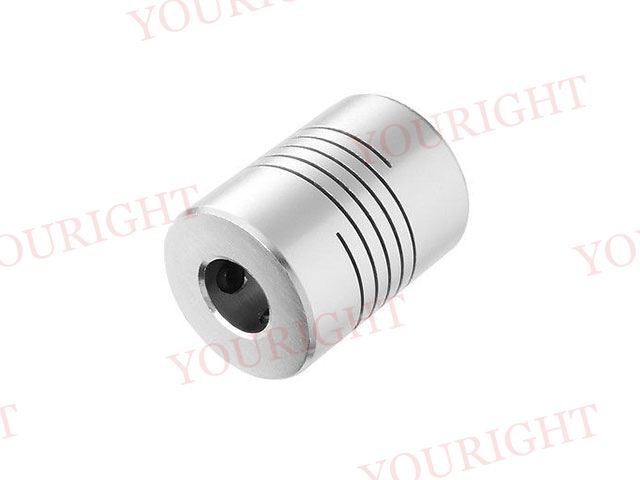

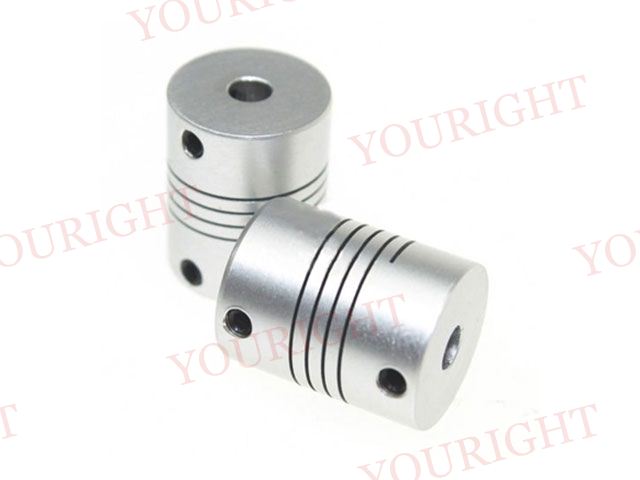

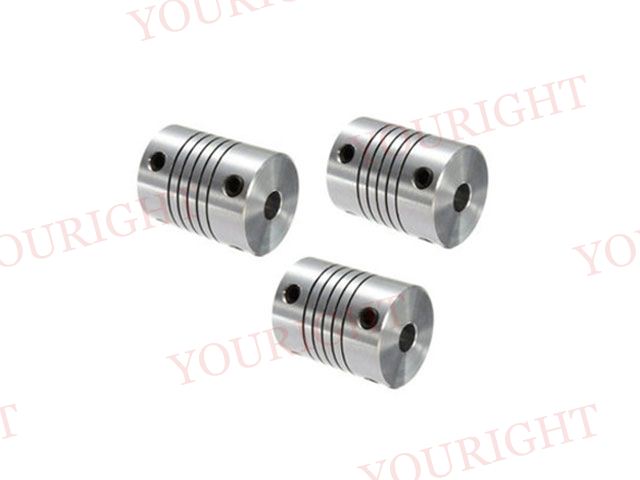

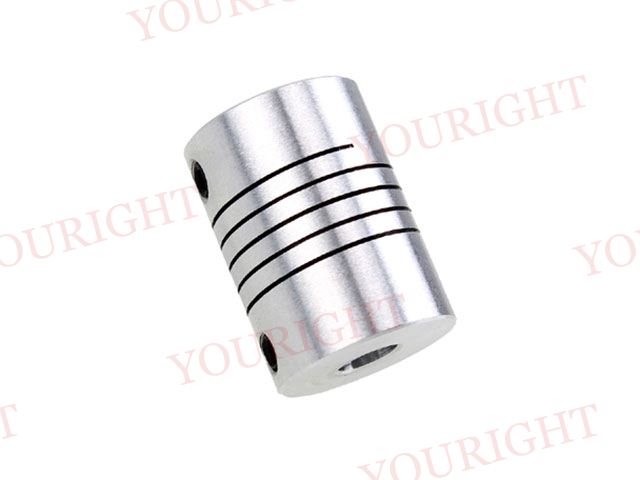

Ball Screw Shaft Coupling
If you are willing to buy Ball Screw Shaft Coupling from one of precision machinery manufacturers and suppliers in China, Youright Precision is always at your service. Welcome your enquiry to us and further business negotiations, let's creat a prosperous future together.
Description
If you are willing to buy Ball Screw Shaft Coupling from one of precision machinery manufacturers and suppliers in China, Youright Precision is always at your service. Welcome your enquiry to us and further business negotiations, let's creat a prosperous future together.
Company Advantage
OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.
Ball Screw Shaft Coupling Model Available
|
Model No. |
Aperture |
D |
L |
|
|
d min |
d max |
|||
|
JT1-16 |
4 |
6.35 |
16 |
23 |
|
JT1-20 |
5 |
9.525 |
20 |
26 |
|
JT1-25 |
8 |
12 |
25 |
31 |
|
JT1-32 |
10 |
14 |
32 |
41 |
|
JT1-40 |
10 |
18 |
40 |
56 |
|
JT1-50 |
12 |
19 |
50 |
71 |
|
JT1-63 |
14 |
24 |
63 |
90 |
Features
1.Zero backlash. One-piece metallic spring coupling. For little torque shaft connect;
|
Model No. |
Aperture |
D |
L |
F |
G |
Tightening Torque（N.m) |
|
|
d min |
d max |
||||||
|
JT1-16 |
4 |
6.35 |
16 |
23 |
3 |
M3 |
0.7 |
|
JT1-20 |
5 |
9.525 |
20 |
26 |
3 |
M3 |
0.7 |
|
JT1-25 |
8 |
12 |
25 |
31 |
4 |
M4 |
1.7 |
|
JT1-32 |
10 |
14 |
32 |
41 |
6 |
M4 |
1.7 |
|
JT1-40 |
10 |
18 |
40 |
56 |
8.5 |
M5 |
4 |
|
JT1-50 |
12 |
19 |
50 |
71 |
10.5 |
M6 |
7 |
|
JT1-63 |
14 |
24 |
63 |
90 |
13 |
M8 |
15 |
|
Model No. |
Rated torque （N.m) |
Max torque (N.m) |
Max Rotational Frequency (rpm) |
Moment of inertia (kg.㎡) |
Static Torsional Stiffness (N.m/rad) |
Errors of Eccentricity (m.m) |
Errors of Angularity (*) |
Errors of Shaft End-play (mm) |
Weight g |
|
JT1-16 |
0.8 |
1.6 |
22000 |
3.2X10-7 |
46 |
0.1 |
1.5 |
±0.3 |
8 |
|
JT1-20 |
1.1 |
2.2 |
18000 |
8.8X10-4 |
115 |
0.1 |
1.5 |
±0.3 |
16 |
|
JT1-25 |
1.4 |
2.8 |
14000 |
2.5X10-4 |
165 |
0.15 |
1.5 |
±0.35 |
28 |
|
JT1-32 |
2.8 |
5.6 |
10000 |
9.5X10-4 |
270 |
0.15 |
1.5 |
±0.35 |
62 |
|
JT1-40 |
6.3 |
12.6 |
9400 |
3.1X10-5 |
345 |
0.2 |
1.5 |
±0.35 |
134 |
|
JT1-50 |
11 |
22 |
7600 |
1.0X10-5 |
580 |
0.2 |
1.5 |
±0.35 |
266 |
|
JT1-63 |
22 |
44 |
6000 |
3.0X10-4 |
830 |
0.2 |
1.5 |
±0.35 |
500 |
The general warranty period is 12 months since the customers receive the goods, if any additional demand, we could extended it to satisfy your special interests.
Exhibition and Customers
Application Industries
FAQ
1. Monthly Capacity: 120,000-140,000 pcs;
2. Material: V.T.A or as per your suggestion;
3. Lead time: about 12-14 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
To find a Ball Screw Shaft Coupling manufacturer in China, we will be your best choice.
