Curved Jaw Coupling

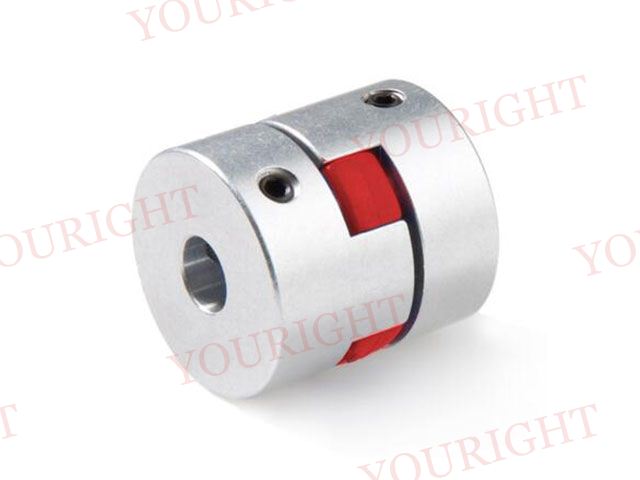

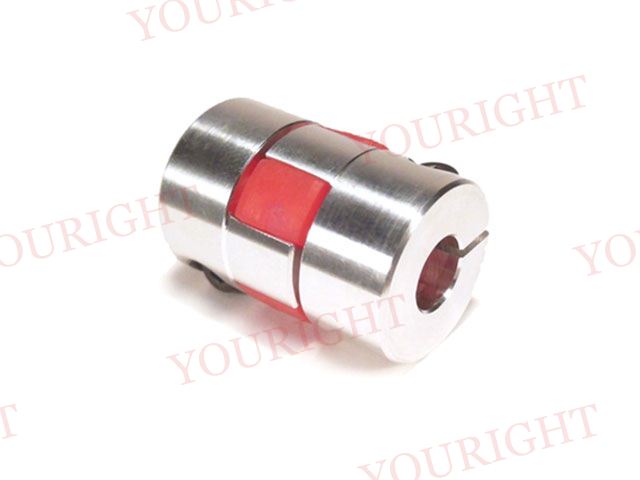

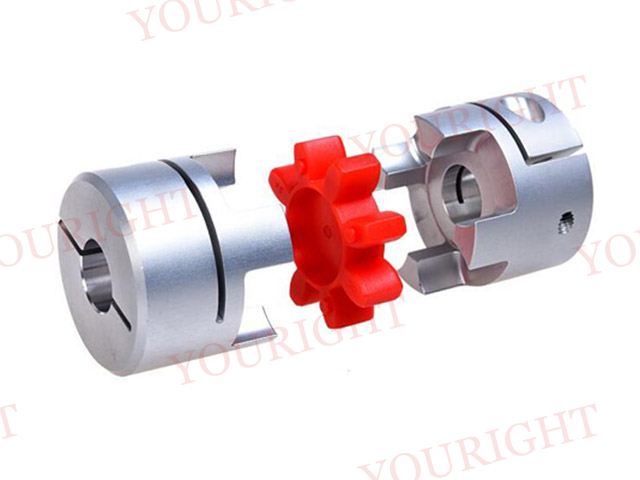

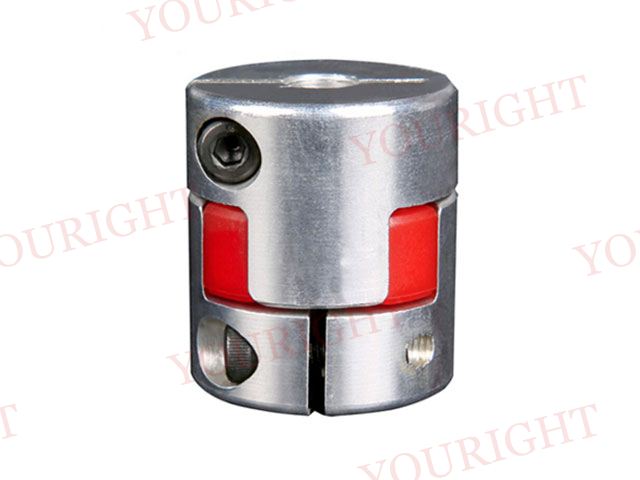

Three piece jaw coupling with Urethane insert , it has high shock absorb, middle tosional ,torque and misalignment compliance ability. And our customers are very satisfied with it. Welcome to inquire us , we will get back to you very soon with very good price . Look forward to our further business negotiations !
Description
Youright Precision is one of the leading manufacturers of Curved Jaw Coupling in Lishui of China. We make high performanced couplings with good price that are very popular and highly demanded in the market.
Company Advantage
OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.
Curved Jaw Coupling Model Available
|
Model No. |
Aperture |
D |
L |
|
|
d min |
d max |
|||
|
JM-25C |
4 |
12 |
25 |
34 |
|
JM-30C |
6 |
16 |
30 |
35 |
|
JM-40C |
10 |
24 |
40 |
66 |
|
JM-55C |
12 |
28 |
55 |
78 |
|
JM-65C |
14 |
38 |
65 |
90 |
|
JM-80C |
24 |
45 |
80 |
114 |
|
JM-95C |
30 |
55 |
95 |
126 |
|
JM-105C |
35 |
60 |
105 |
140 |
Features
1.Coupling hubs made from high grade aluminum bar stock for precise fit, superior strength and bright finish;
2.Balanced hub design to support higher RPM with reduced vibration;

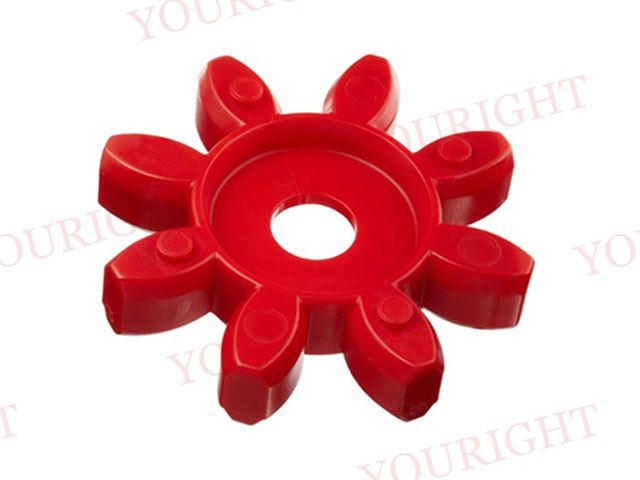

3.Polyurethane material of the spider dampens impulse loads while minimizing shock to the motor and other sensitive equipment;
4.Easy installation and maintenance, anti oil and corrosion resistant; customized size available upon request;
5.Considered fail safe because if the spider becomes compromised the jaws of the two hubs interlock for direct power transmission allowing the machine to be shut down safely.
|
Model No. |
Aperture |
D |
|
L |
L1 |
L2 |
F |
M |
Tightening Torque（N.m) |
|
|
d min |
|
d max |
||||||||
|
JM-25C |
|
4 |
12 |
25 |
34 |
11 |
12 |
5 |
M4 |
1.3 |
|
JM-30C |
|
6 |
16 |
30 |
35 |
11 |
13 |
5 |
M4 |
1.7 |
|
JM-40C |
|
10 |
24 |
40 |
66 |
25 |
16 |
10 |
M5 |
8 |
|
JM-55C |
|
12 |
28 |
55 |
78 |
30 |
18 |
10.5 |
M6 |
8 |
|
JM-65C |
|
14 |
38 |
65 |
90 |
35 |
20 |
11.5 |
M8 |
15 |
|
JM-80C |
|
24 |
45 |
80 |
114 |
45 |
24 |
15.5 |
M8 |
15 |
|
JM-95C |
|
30 |
55 |
95 |
126 |
50 |
26 |
18 |
M10 |
25 |
|
JM-105C |
|
35 |
60 |
105 |
140 |
56 |
28 |
21 |
M12 |
35 |
|
Model No. |
Rated torque（N.m) |
Max torque (N.m) |
Max Rotational Frequency (rpm) |
Moment of inertia (kg.㎡) |
Static Torsional Stiffness (N.m/rad) |
Errors of Eccentricity (m.m) |
Errors of Angularity (*) |
Errors of Shaft End-play (mm) |
Weight g |
|
JM-25C |
5 |
10 |
17000 |
6.7X10-4 |
55 |
0.02 |
1 |
＋0.6, 0 |
37 |
|
JM-30C |
7.4 |
14.8 |
12000 |
8.5X10-4 |
72 |
0.02 |
1 |
＋0.6, 0 |
50 |
|
JM-40C |
9.5 |
19 |
10000 |
1.1X10-3 |
550 |
0.02 |
1 |
＋0.8, 0 |
156 |
|
JM-55C |
34 |
68 |
8000 |
4.4X10-3 |
1500 |
0.02 |
1 |
＋0.8,0 |
362 |
|
JM-65C |
95 |
190 |
6000 |
9X10-3 |
2800 |
0.02 |
1 |
＋0.8, 0 |
582 |
|
JM-80C |
135 |
270 |
4600 |
1.8X10-2 |
3500 |
0.02 |
1 |
＋1.0, 0 |
966 |
|
JM-95C |
230 |
460 |
3800 |
2X10-2 |
4600 |
0.02 |
1 |
＋1.0, 0 |
1820 |
|
JM-105C |
3/80 |
760 |
3400 |
3.2X10-2 |
5800 |
0.02 |
1 |
＋1.0, 0 |
2430 |
Warranty Statement
The general warranty period is 12 months since the customers receive the goods, if any additional demand, we could extended it to satisfy your special interests.
Exhibition and Customers
Application Industries
The Curved Jaw Coupling is widely used in CNC machines, electrical motors, Precision Lathe, Automated machinery, Robot, General industrial machinery, Automated machinery, Electronic machinery, Transportation machinery, Food Machinery, Industrial gearboxes, Pumps, Agricultural machinery, etc.
FAQ
1. Monthly Capacity: 120,000-140,000 pcs;
2. Material: V.T.A or as per the customers’ suggestion;
3. Lead time: around 7-12 days, pls confirm before order;
4. Incoterm: FOB, C&F, CIF;
5. Delivery Cost: Pls advise the port of destination and we could assist to check it for you; 6. Payment Term: T/T; L/C; PayPal; Alibaba Trade Assurance.
To find a Curved Jaw Coupling manufacturer in China, we will be your best choice. Please feel free to email us.
