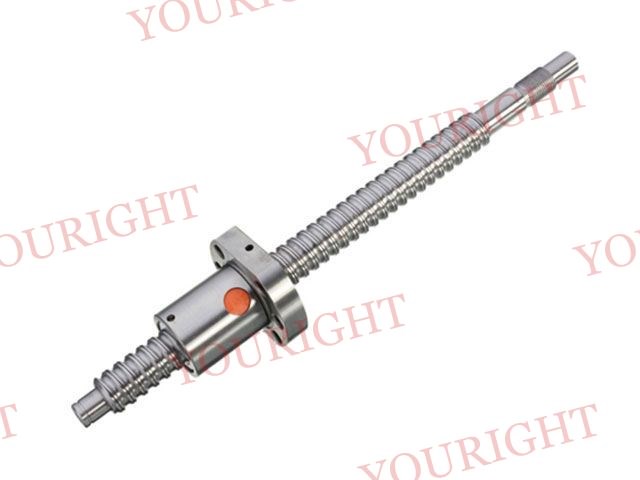

SFU 1605 ball screw

Single nut ball screw , diameter 16mm , pitch 5mm, length customized ,widely used in linear motion system of automatic machine.
Manufactured in accordance with famous brand standards and made from quality assured material. Owing to the perfect finish and high performance, our ball screws are very popular and highly demanded in the market.

Enquiry Online
Send an E-mail

Description

Youright Precision is one of the leading manufacturers of Ball Screw in Lishui of China. It provides products that have high positioning accuracy and repeatability, smooth movement and long service life. Owing to these features, our ball screws are very popular and highly demanded in the mark. And they will be very good choices for you as well !


Company Advantage

OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.

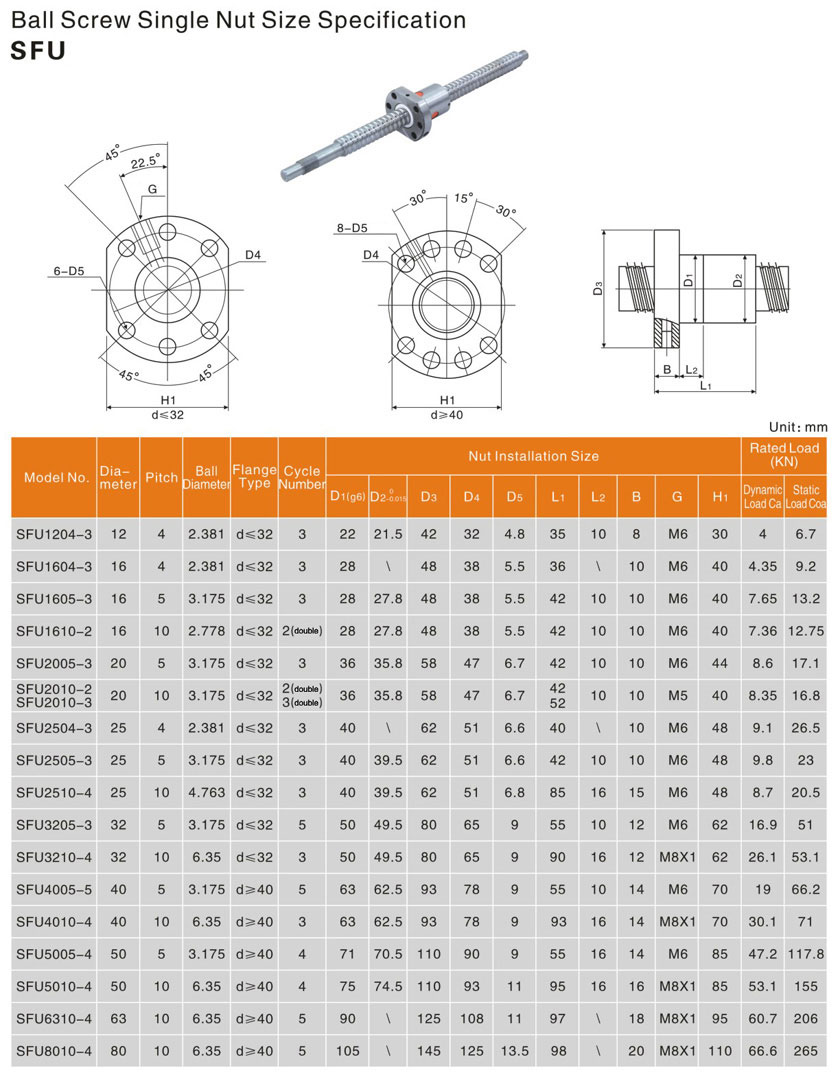

Details for SFU Ball Screw

Product name

SFU Ball Screw,Single Nut Ball Screw, Ball Screw Assembly

Material

Bearing steel, harden steel, Chrome steel, Stainless steel

Function

Anti-friction, Dustproof

Packing details

Plastic bag + wooden box or according to customers' demands

MOQ

1 piece/sample available for test

Delivery time

Samples 3-5 days, small order 7-10days, bulk order 10-20days

Application

CNC machines, electrical motors, Precision Lathe, Automated machinery, Robot, General industrial machinery, Automated machinery, Electronic machinery, Transportation machinery, Food Machinery, industrial gearboxes, pumps,agricultural machinery, etc.

Ball screw series

SFU


Ball Screw Model Available

Pitch 4mm

SFU1204, SFU1604, SFU2004, SFU2504

Pitch 5mm

SFU1605, SFU2005, SFU2505, SFU3205, SFU4005, SFU5005

Pitch 10mm

SFU1610, SFU2010, SFU2510, SFU3210, SFU4010, SFU5010, SFU6310, SFU8010

Ball screw parts

Ball screw nut, nut housing, ball screw support BK, BF, EK, EF, FK, FF end maching service is available

Warranty Statement

The general warranty period is 12 months since the customers receive the goods, if any additional demand, we could extended it to satisfy your special interests.

Exhibition and Customers

Application Industries


FAQ

1. Production Capacity: 100,000-120,000 pcs per month;

2. Material: V.T.A or as per the customers’ suggestion;

3. Lead time: Samples 3-5 days, small order 7-10 days, bulk order 10-20 days;

4. Incoterm: FOB, C&F, CIF;

5. Delivery Cost: Pls advise the port of destination and we could assist to check it for you;

6. Payment Term: T/T; L/C; PayPal; Alibaba Trade Assurance.


If you are interested in Ball Screws from China, we will be your best choice.

Thank you for your visiting!

We look forward to your cooperation!
