Rolled Ball Screw

Youright Precision Rolled Ball Screws are made through a rolling process of the screw spindle instead of a grinding process. Rolled Ball Screw provides smooth movement and low friction which can be supplied quickly from stock, at a lower production cost.

Description

Youright Precision Rolled Ball Screws are made through a rolling process of the screw spindle instead of a grinding process. Rolled Ball Screw provides smooth movement and low friction which can be supplied quickly from stock, at a lower production cost.


Company Advantage

OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.

Details Of Rolled Ball Screw

Product name

Rolled Ball Screw, CNC Ball Screw, China Ball Screw

Material

Bearing steel, harden steel, Chrome steel, Stainless steel

Function

Anti-friction, Dustproof

Packing details

Plastic bag + wooden box or according to customers' demands

MOQ

1 piece/sample available for test

Delivery time

Samples 3-5 days, small order 7-10days, bulk order 10-20days

Application

CNC machines, electrical motors, Precision Lathe, Automated machinery, Robot, General industrial machinery, Automated machinery, Electronic machinery, Transportation machinery, Food Machinery, industrial gearboxes, pumps,

agricultural machinery, etc.

Ball screw series

SFU, DFU, SFE

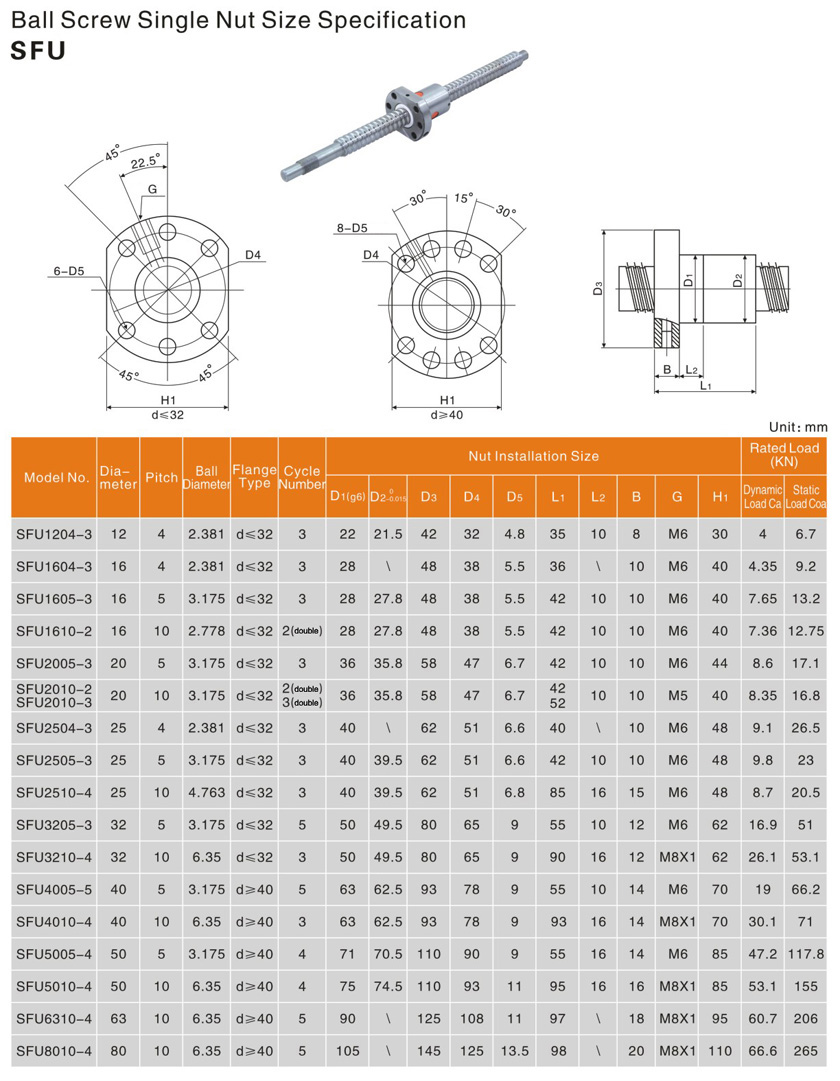

Ball Screw Model Available

Pitch 4mm

SFU1204, SFU1604, SFU2004, SFU2504

Pitch 5mm

SFU1605, SFU2005, SFU2505, SFU3205, SFU4005, SFU5005

Pitch 10mm

SFU1610, SFU2010, SFU2510, SFU3210, SFU4010, SFU5010, SFU6310, SFU8010

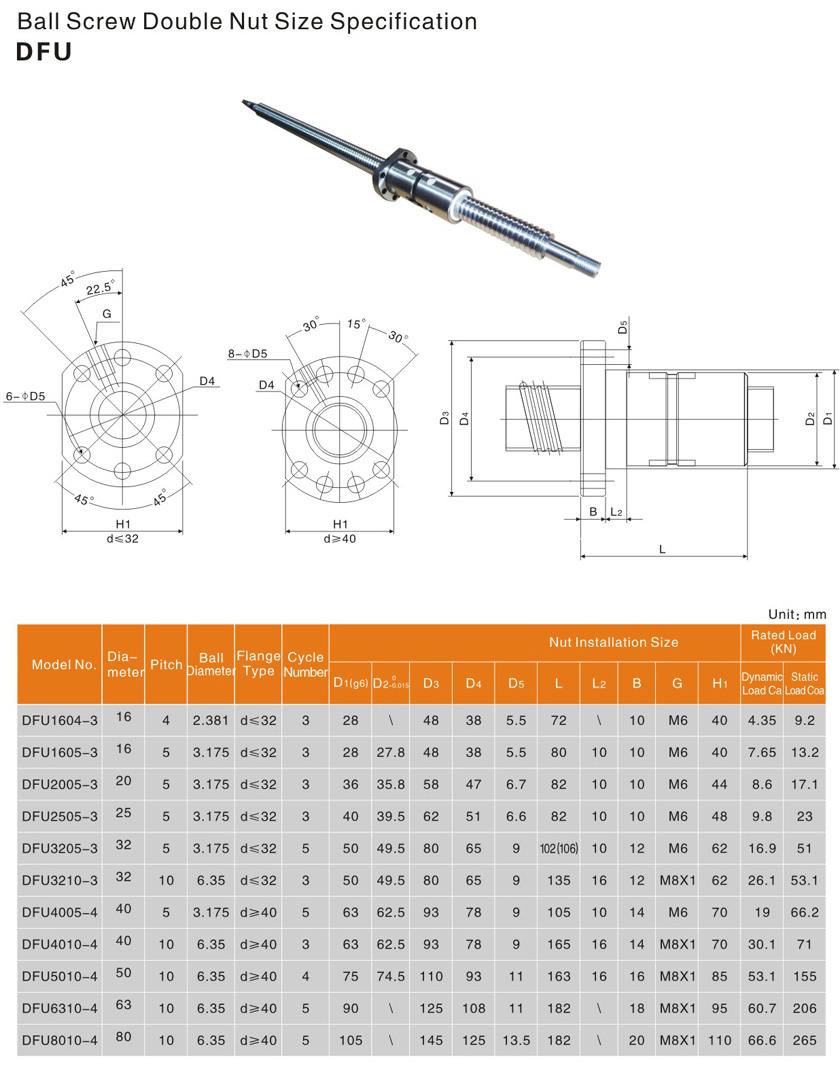

Double nut

DFU1604, DFU1605, DFU2005, DFU2505, DFU2510, DFU3205, DFU3210, DFU4005, DFU4010, DFU5010, DFU6310, DFU8010

Ball screw parts

Ball screw nut, nut housing, ball screw support BK, BF, EK, EF, FK, FF end maching service is available

Warranty Statement

The general warranty period is 12 months since the customers receive the goods, if any additional demand, we could extended it to satisfy your special interests.

Exhibition and Customers

Application Industries

The Rolled Ball Screw is widely used inSamping Machines, Automatic Stamping Machines,Bending Machines, Welding Machines, Punching Machines, Brushing, Laser Cutting Machine, CNC Machining Lathes, etc.

FAQ

1. Monthly Capacity: 100,000-120,000 pcs;

2. Material: V.T.A or as per the customers’ suggestion;

3. Lead time: Samples 3-5 days, small order 7-10 days, bulk order 10-20 days;

4. Incoterm: FOB, C&F, CIF;

5. Delivery Cost: Pls advise the port of destination and we could assist to check it for you;

6. Payment Term: T/T; L/C; PayPal; Alibaba Trade Assurance.


If you are interested in a Rolled Ball Screw manufacturer in China, we would be your best choice.
