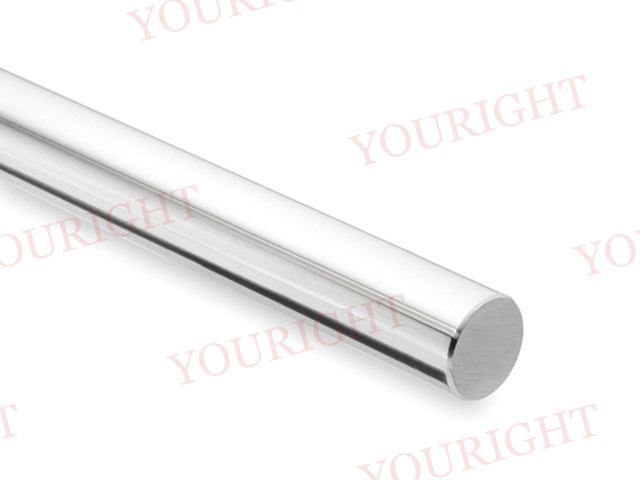

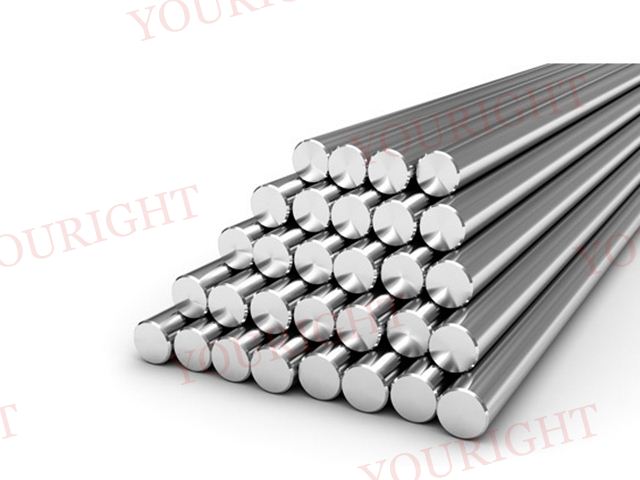

Cylinder Linear Shaft

Cylinder Linear Shaft is case hardened to HRC58-62 and suitable for use with linear bearings and linear ball bearings. Cylinder Linear Shaft provides the most consistent surface hardness and depth of hardness across a range of sizes, offering increased performance.

Company Advantage

OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.

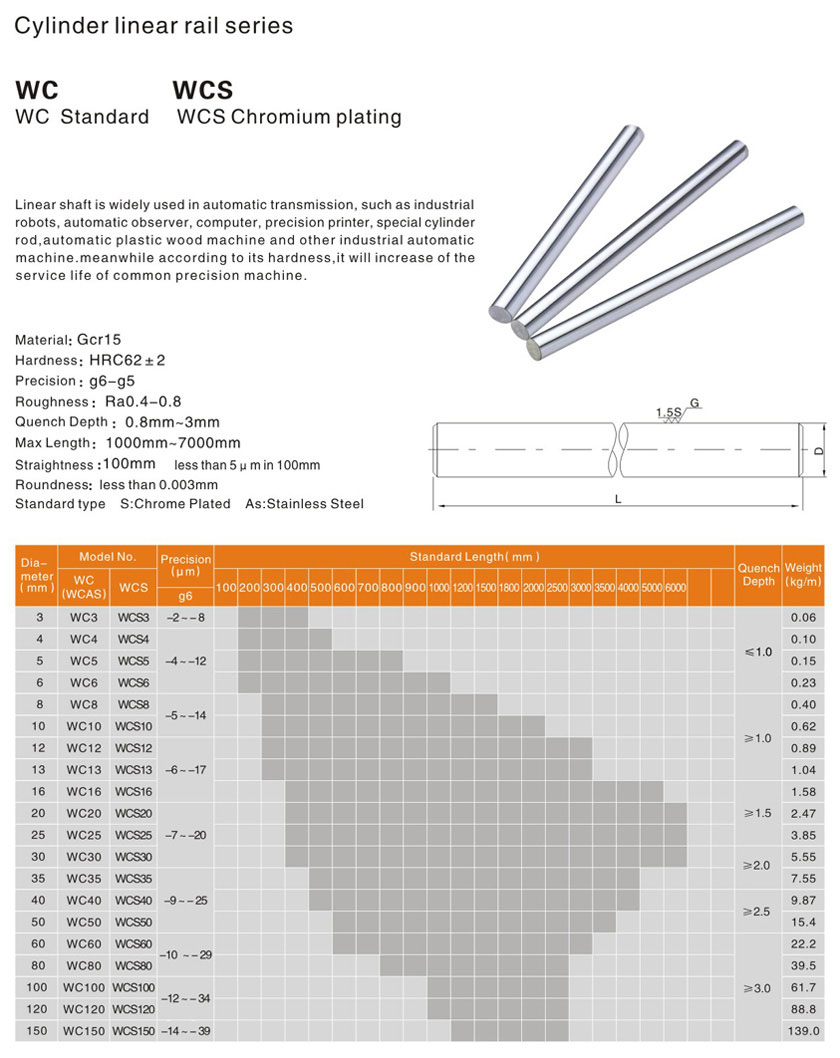

Details for Cylinder Linear Shaft

The Cylinder Linear Shaft is chrome plated for corrosion resistance, case hardened for wear resistance, and precision ground for consistent ball bushing radial clearance. The shaft diameter and length are specified for accurate fit and this shaft is suitable for use in applications, such as measuring systems, printing equipment, and computer numerical control (CNC) tools. Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

Features

1.Chrome plated for corrosion resistance;

2.Case hardened for wear resistance;

3.Precision ground for consistent ball bushing radial clearance;

4.Shaft diameter and length specified for accurate fit;

5.Round steel shaft for use with linear support blocks and closed type slide units in linear motion applications.

Special Machining for Linear Shaft

1.we can offer linear shaft with diameter5mm-150mm,maximum length up to 6000mm.

when you have special requirements on length, we can meet your machining requirement with different length,suach as when you request above 6000mm,we can anti-connect for you .

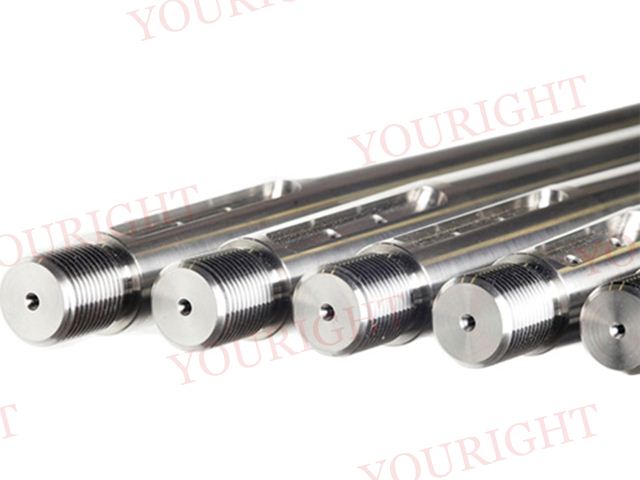

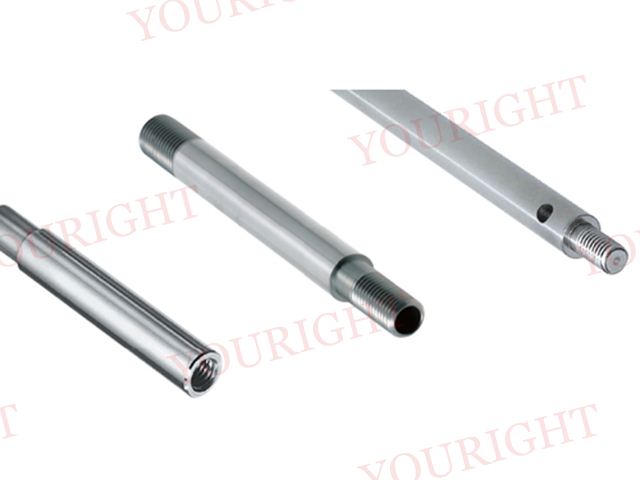

2.when you have special requirement on machining,such as threading,coaxial holes drilled and tapped,radial holes drilled and tapped, reduced linear shaft diameter etc,we can machine for you ,and these special machines finished after heat treatment and chromic which will ensure the precision of products.

Warranty Statement

The warranty period is 12 months since you received the goods at the destination port, if any other special requirement, please inform us, and we will serve better and better.

Exhibition and Customers

Application Industries

FAQ

To find a Cylinder Linear Shaft manufacturer in China, we could be your best choice.

Thank you for your visiting!

            We appreciate your business!

                                      ----Youright Precision
