Linear Guide Shaft
Made from quality assured material. Owing to the perfect finish and high performance, our ball linear guide shaft is very popular and highly demanded in the market.
Description
Youright Precision is one of the leading manufacturers of Linear guide shaft in Lishui of China. It provides products that have high positioning accuracy and repeatability, smooth movement and long service life. Owing to these features, our linear shaft is very popular and highly demanded in the mark. And it will be a very good choices for you as well !
Company Advantage
OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.

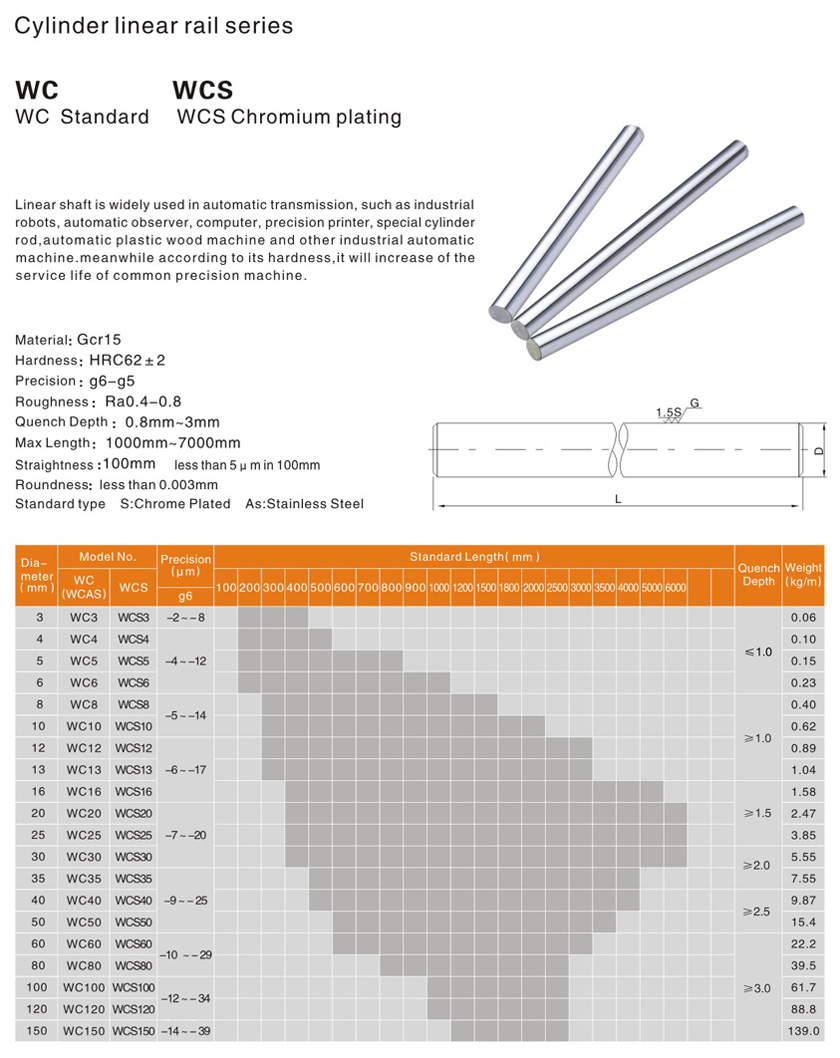

Details for Linear Guide Shaft
|
Product name |
Linear Guide Shaft, linear rod, steel bar |
|
Diameter |
3mm-150mm |
|
Length |
max length is 6 meters, also can be cut off according to customers' demands |
|
Material |
carbon steel, bearing steel Gcr15, stainless steel |
|
Surface finish |
harden chrome plated or none chrome |
|
Plating thickness |
10~20 μm in radius |
|
Heat treatment |
induction hardened or non hardened |
|
Hardness |
HRC 58~62 |
|
Hardness depth |
0.8~3mm |
|
Precision |
g6 |
|
Roughness |
less than 1.5 μm |
|
Straightness |
less than 5 μm in 100mm |
|
Roughness |
less than 3 μm |
|
customized for |
end stepped, end tapped, end thread, key grooved and so on |
Special Machining for Linear Shaft
1.we can offer linear shaft with diameter5mm-150mm,maximum length up to 6000mm.
when you have special requirements on length, we can meet your machining requirement with different length,suach as when you request above 6000mm,we can anti-connect for you .
2.when you have special requirement on machining, such as threading, coaxial holes drilled and tapped,radial holes drilled and tapped, reduced linear shaft diameter etc, we can machine for you ,and these special machines finished after heat treatment and chromic which will ensure the precision of products.
Warranty Statement
The warranty period is 12 months after you receive the goods at the destination port.
Exhibition and Customers
2. Marble cutting machines
3. Heavy cutting machines
4. Woodworking machinery
5. Machine centers, Machine tools
6. Precision machining machines
7. Heavy cutting machines, Punching machines,
8. Automatic equipments, Grinding machines
9. Semiconductor manufacturing equipment
10. High speed transfer equipments
FAQ
1. Monthly Capacity: 120,000-150,000 m;
2. Material: Vendor to advise or as per your suggestion;
3. Lead time: about 8-12 days, pls confirm the quantities required;
4. Incoterms: FOB, CFR, CIF;
5. Freight Cost: It is decided by the destination port;
6. Payment Term: T/T; L/C, Credit Card, Cash.
Thanks for your visiting and welcome to inquire us !
