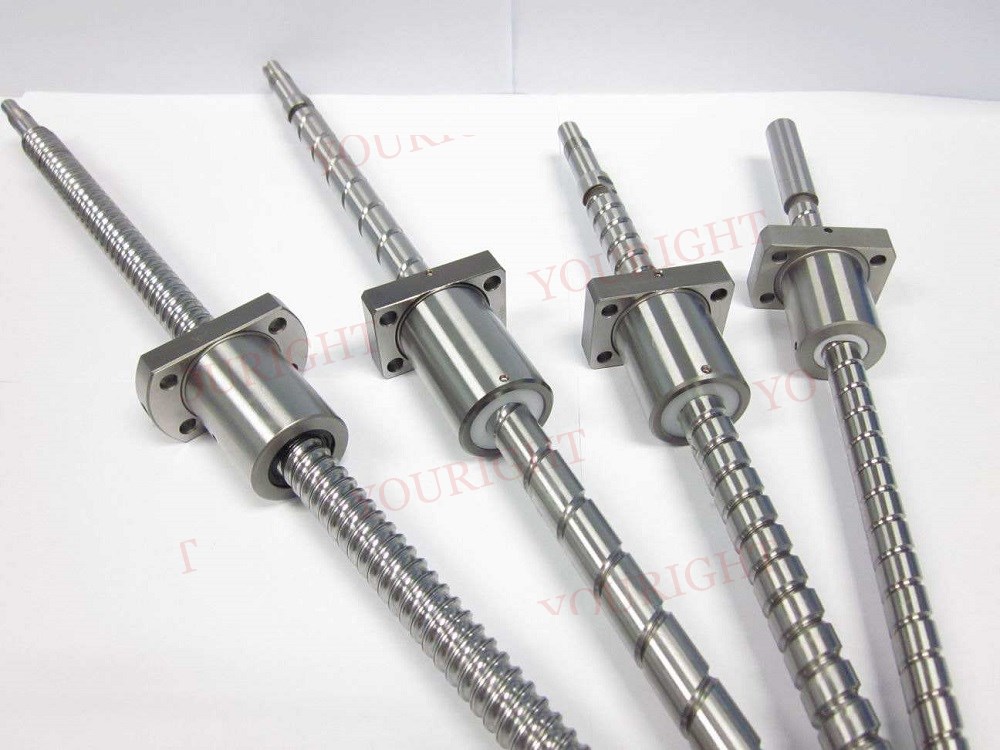

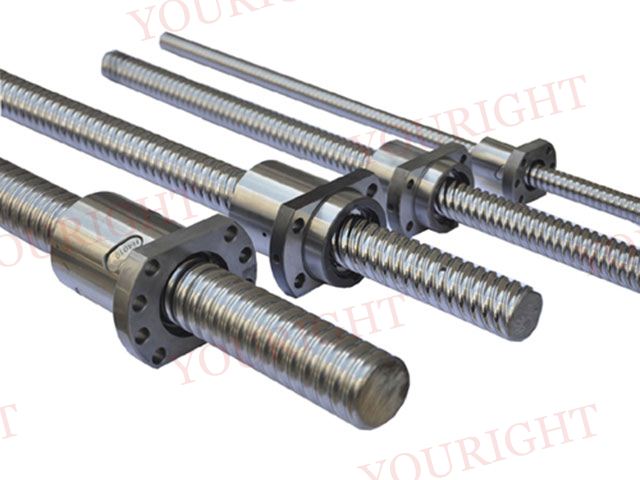

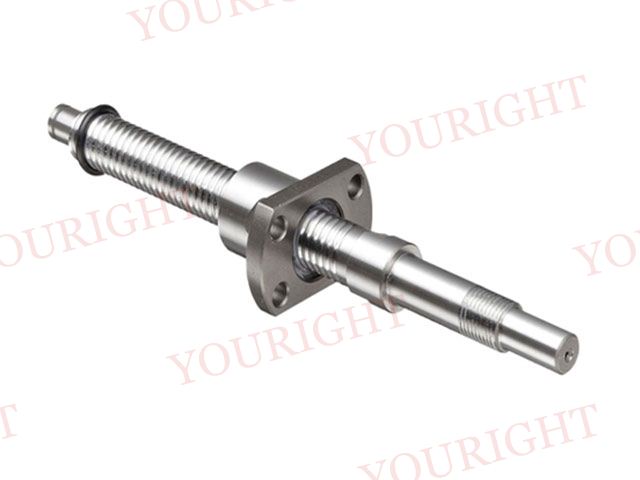

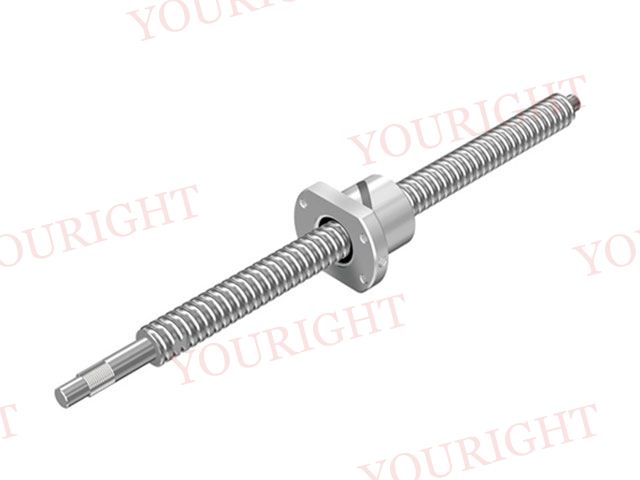

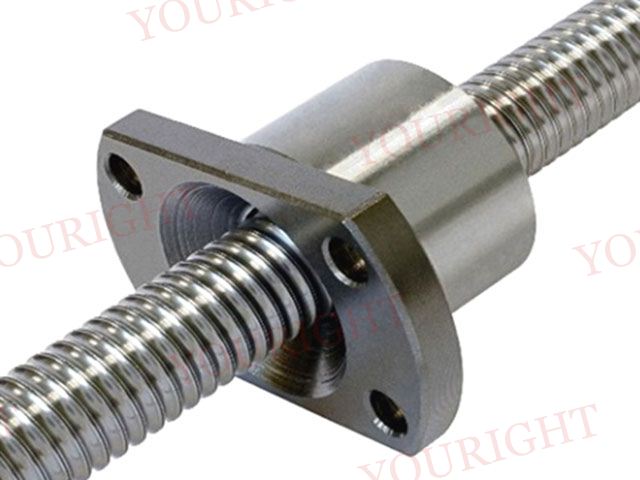

Roller Ball Screw

Youright Precision’s Roller Ball Screws are made through a rolling process of the screw spindle instead of a grinding process. Roller Ball Screw provides smooth movement and low friction which can be supplied quickly from stock, at a lower production cost.

Description

Youright Precision’s Roller Ball Screws are made through a rolling process of the screw spindle instead of a grinding process. Roller Ball Screw provides smooth movement and low friction which can be supplied quickly from stock, at a lower production cost.


Company Advantage

OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.

Details for Roller Ball Screw

Roller Ball Screws are low priced feed screws that use a screw shaft rolled with high accuracy and specially surface-ground, instead of a thread-ground shaft used in the Precision Ball Screws. The ball raceways of the ball screw nut are all thread-ground, thus to achieve a smaller axial clearance and smoother motion than the conventional rolled ball screw. We finishes the ball raceways of Rolled Ball Screw nuts by grinding, just as the Precision Ball Screws, to secure the durability and the smooth motion. The ball screw nut is incorporated with a compact labyrinth seal or a brush seal. This achieves a low friction, a high dust-prevention effect and a longer service life of the Ball Screw.

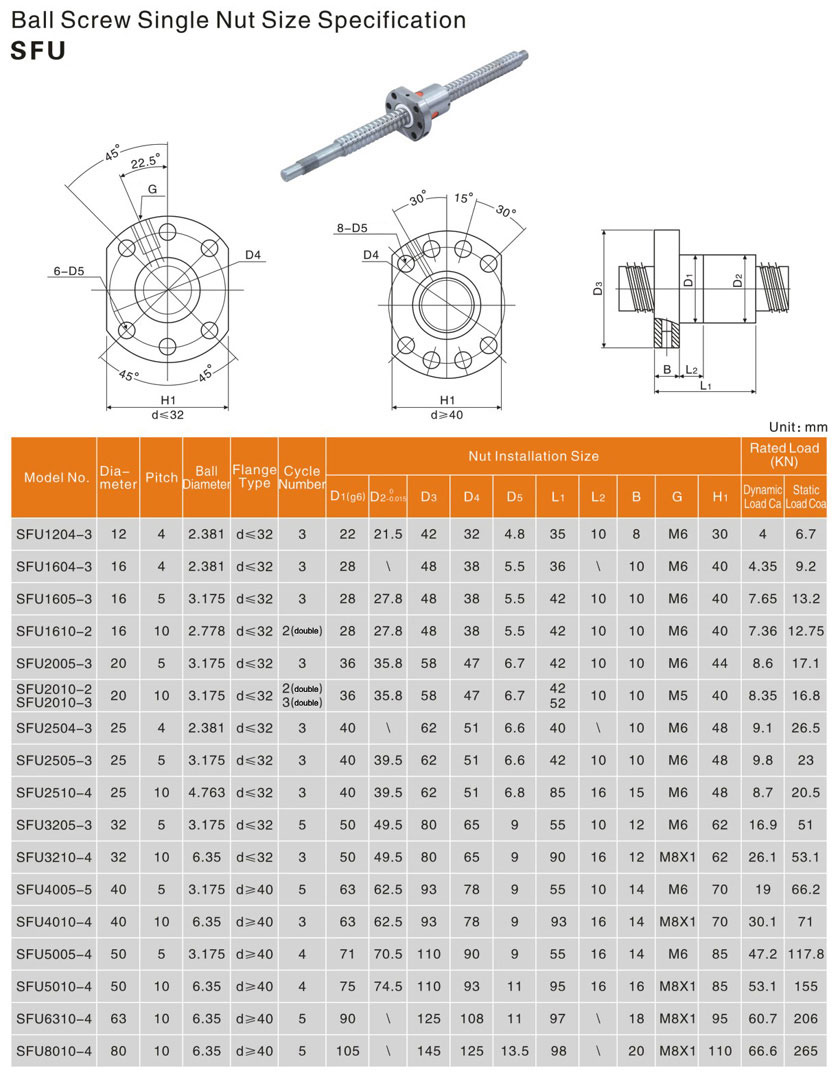

Ball Screw Model Available

Pitch 4mm

SFU1204, SFU1604, SFU2004, SFU2504

Pitch 5mm

SFU1605, SFU2005, SFU2505, SFU3205, SFU4005, SFU5005

Pitch 10mm

SFU1610, SFU2010, SFU2510, SFU3210, SFU4010, SFU5010, SFU6310, SFU8010

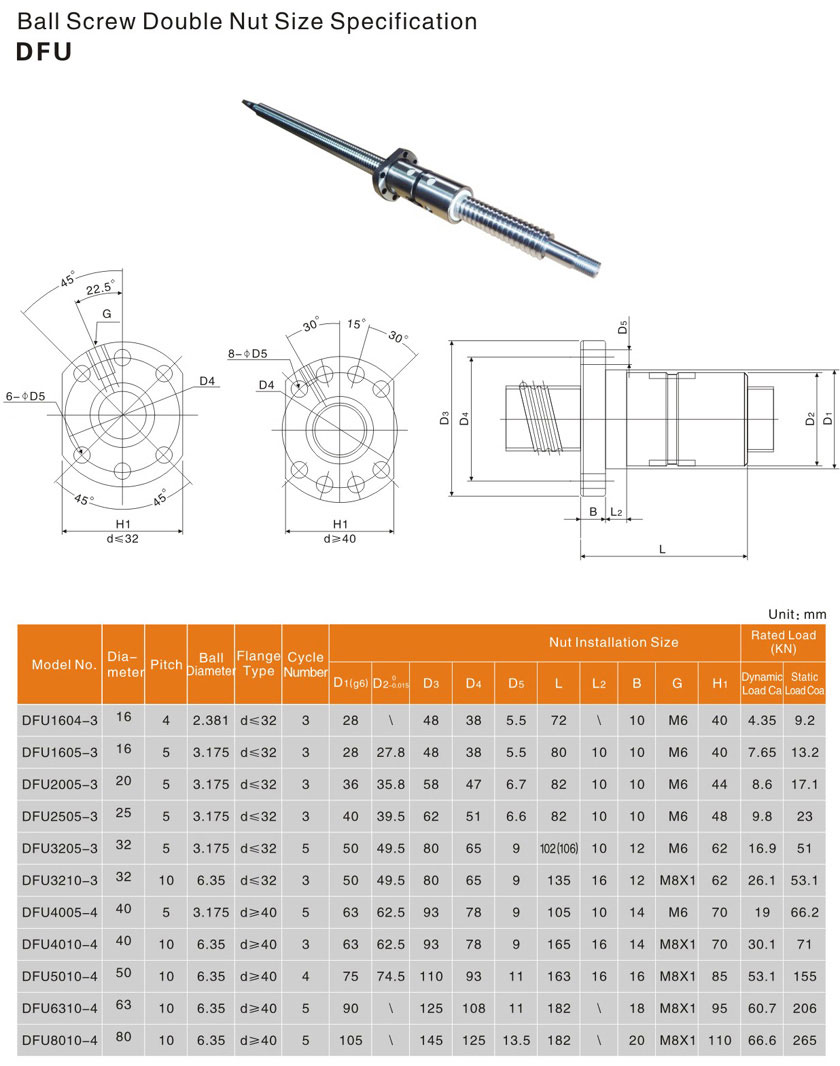

Double nut

DFU1604, DFU1605, DFU2005, DFU2505, DFU2510, DFU3205, DFU3210, DFU4005, DFU4010, DFU5010, DFU6310, DFU8010

Ball screw parts

Ball screw nut, nut housing, ball screw support BK, BF, EK, EF, FK, FF end maching service is available

Warranty Statement

The general warranty period is 12 months since the customers receive the goods, if any additional demand, we could extended it to satisfy your special interests.

Exhibition and Customers

Application Industries

FAQ

1. Monthly Capacity: 100,000-120,000 pcs;

2. Material: Vendor to advise or as per the customers’ suggestion;

3. Lead time: Samples 3-5 days, small order 7-10 days, bulk order 10-20 days;

4. Incoterm: FOB, CFR, CIF;

5. Delivery Cost: Pls advise the port of destination and we could assist to check it for you;

6. Payment Term: T/T; L/C; PayPal; Alibaba Trade Assurance.


To find a High Precision Ball Screw manufacturer in China, we will be your best choice.
