3D Printer Linear Shaft
3D Printer Linear Shaft is case hardened to HRC58-62 and suitable for use with linear bearings and linear ball bearings. 3D Printer Linear Shaft provides the most consistent surface hardness and depth of hardness across a range of sizes, offering increased performance.
Description
3D Printer Linear Shaft is case hardened to HRC58-62 and suitable for use with linear bearings and linear ball bearings. 3D Printer Linear Shaft provides the most consistent surface hardness and depth of hardness across a range of sizes, offering increased performance.
Company Advantage

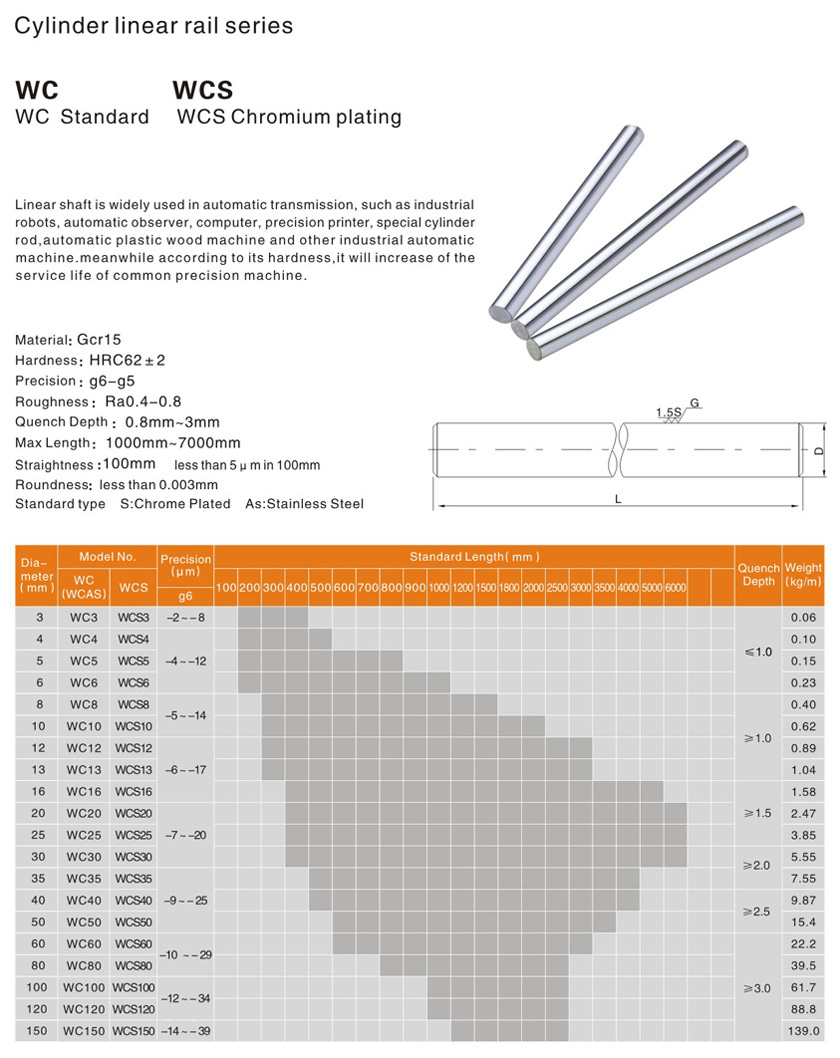

Details for 3D Printer Linear Shaft
|
Product Name |
High Quality 3d Printer machine parts Linear Bearing Shaft |
|
Material |
SUS44DC/GCr15 |
|
Color |
nickel white |
|
Hardness |
HRC62±(SUS440C:HRC58) |
|
Precision |
g6 |
|
Length |
customized, 100-6000mm |
|
Used |
Linear shaft is widely used in automatic transmission devices, like industrial robots, 3D printers, automatic recorders, computers, precision printers, special cylinder rod, wood automatic molding machines and many other industrial auto machines. and on account of its good hardness, it could extends lifetime of normal transmission devices. |
Features
1.Chrome plated for corrosion resistance;
2.Case hardened for wear resistance;
3.Precision ground for consistent ball bushing radial clearance;
4.Shaft diameter and length specified for accurate fit;
5.Round steel shaft for use with linear support blocks and closed type slide units in linear motion applications.
Special Machining for 3D Printer Linear Shaft
1.we can offer linear shaft with diameter5mm-150mm,maximum length up to 6000mm.when you have special requirements on length, we can meet your machining requirement with different length, such as when you request above 6000mm,we can anti-connect for you .
2.when you have special requirement on machining, such as threading, coaxial holes drilled and tapped, radial holes drilled and tapped, reduced linear shaft diameter etc, we can machine for you ,and these special machines finished after heat treatment and chromic which will ensure the precision of products.
Warranty Statement
The warranty period is 12 months since you receive the goods, we could provide fine after-sales service and extend the warranty time while you need other technical supports.
Application Industries
The product quality standards are guaranteed. Youright manufacture the precision machinery with fine advanced technology in accordance with ISO 9001 & CE international quality management system. We are proactive and keep the products in a high quality and long warranty time.
We are a highly qualified team, our employees have wide experiences and understand your real needs and key points, being able to generate solutions to fully satisfy you. We believe that the product quality and customer service are our key work, and consistently try to satisfy or exceed the clients' expectations.
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.
To find a 3D Printer Linear Shaft manufacturer in China, we could be your best choice.
